Backup Battery Kit Ballast Power Emergency Driver Panic Light Plastic Lead Acid White 3W 8W

Mô tả sản phẩm

Product description

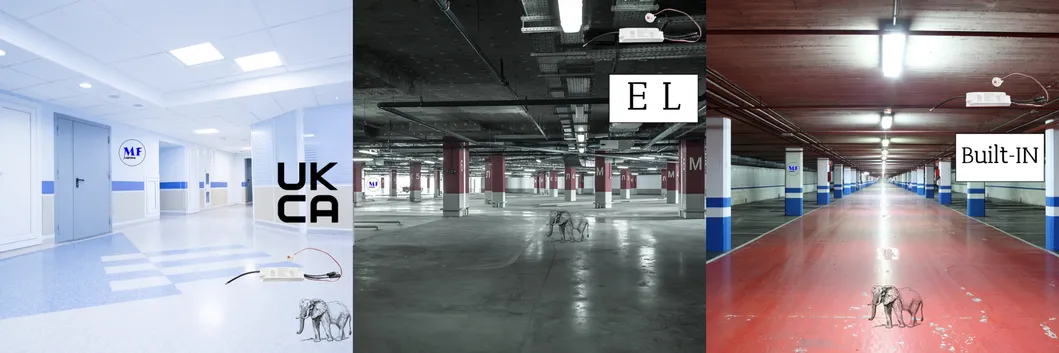

Aplication of Light

This power supply is mainly used for emergency lighting fixtures.
But our this series of power supplies also can be used in various types of lamps, such as flat panel lights, panel lights, Tri- proof lights,

downlights, spotlights, linear lights,Explosion proof light, Wallpack, Tunnel light, Flood light, Street Light, etc., whose external drive output current is ≤3A.

Production Line



Product parameters

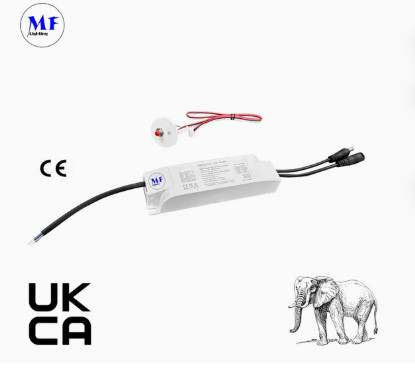

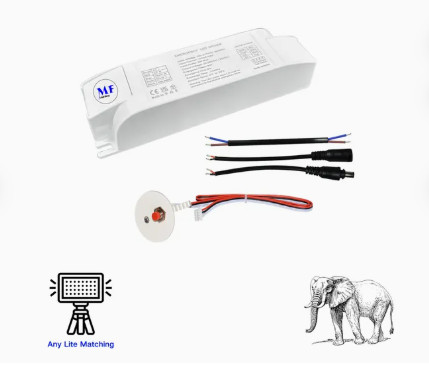

Detailed photos

LED AND TEST BUTTON STATUS

TEST BUTTON:

1: 0S<Key≤2S,Enter a simulated state of emergency,the green indicator blinks
once every second,keep emergency status for 10±1 seconds and back to normal status2: In simulated emergency situations,
Short press once to exit and return to the normal charging state
3: 0S<Key≤1S,In the emergency state, the emergency state is turned off.


QUARTERLY SELF-TEST:

when emergency driver is on power,every 180 days± 1 day automatically enter the emergency state,emergency duration until the battery is discharged,then return to power-on status.

LED indicator:
Mounting hole 6.5mm dia


Test switch:
Mounting hole 7mm dia

Installation and Notifications:

1: If it is used for the first time or it does not enter the normal working
state after being over-discharged, it is necessary to connect the main power to activate the emergency power supply and charge it for 24 hours. Please use the original emergency battery provided.

2:When installing and using it, please keep it away from heat sources and only use
it within a certain working temperature range.

3: Should be stored in a cool, dry environment.

4: After prolonged storage, recharge at least once every 6 months as needed.

5:Emergency driver testing must be longer than 1min, don't press the testing button frequently.
