| Số lượng đặt hàng tối thiểu : | 1pcs | chi tiết đóng gói : | 185*38*24,5mm |
|---|---|---|---|
| Thời gian giao hàng : | 7 ngày | Điều khoản thanh toán : | L/C, D/A, D/P, T/T, Western Union |
| Khả năng cung cấp : | 5000 chiếc / tháng |
| Nguồn gốc: | Trung Quốc | Hàng hiệu: | MF |
|---|---|---|---|
| Chứng nhận: | CE, RoHS | Số mô hình: | MF-KM-XXW-YYY-15W |
|
Thông tin chi tiết |
|||
| Làm nổi bật: | UL924 Emergency Panic Light Ballast,2500mAh Emergency Panic Light Ballast,CSA Emergency Panic Light Ballast |
||
|---|---|---|---|
Mô tả sản phẩm

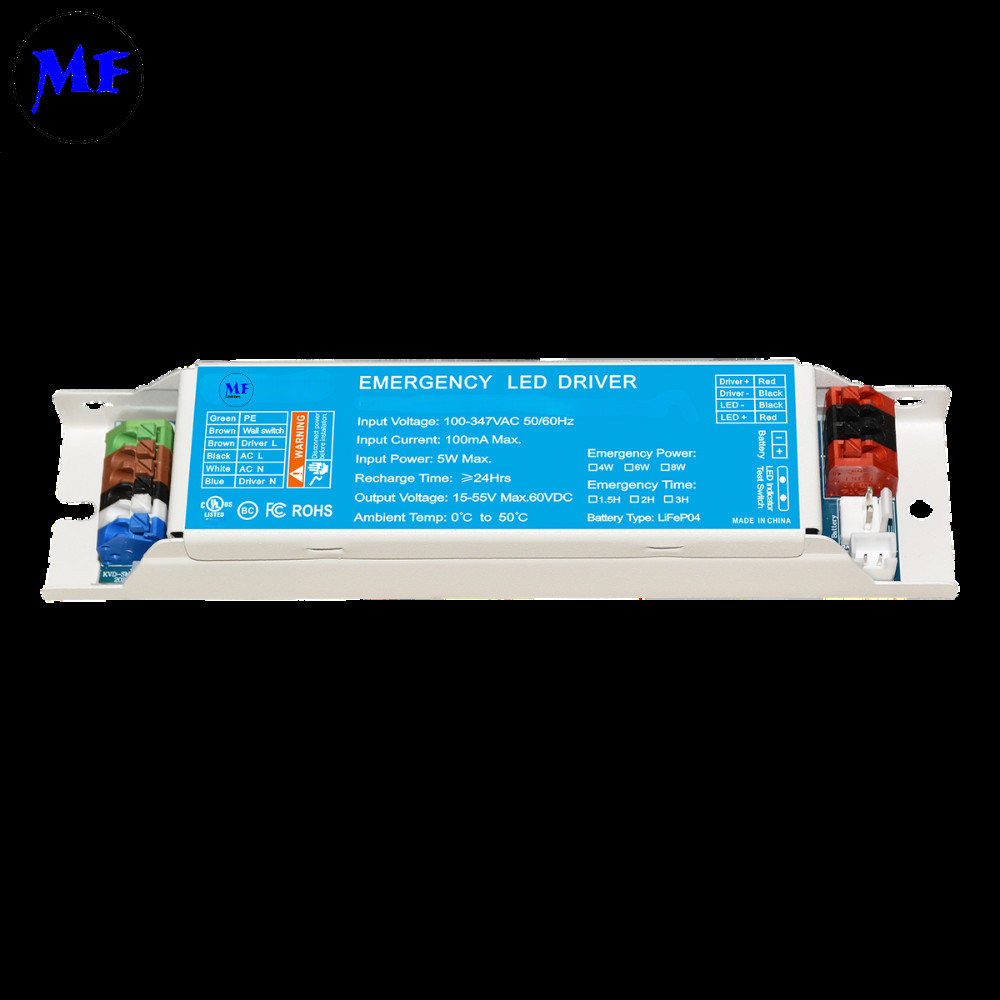

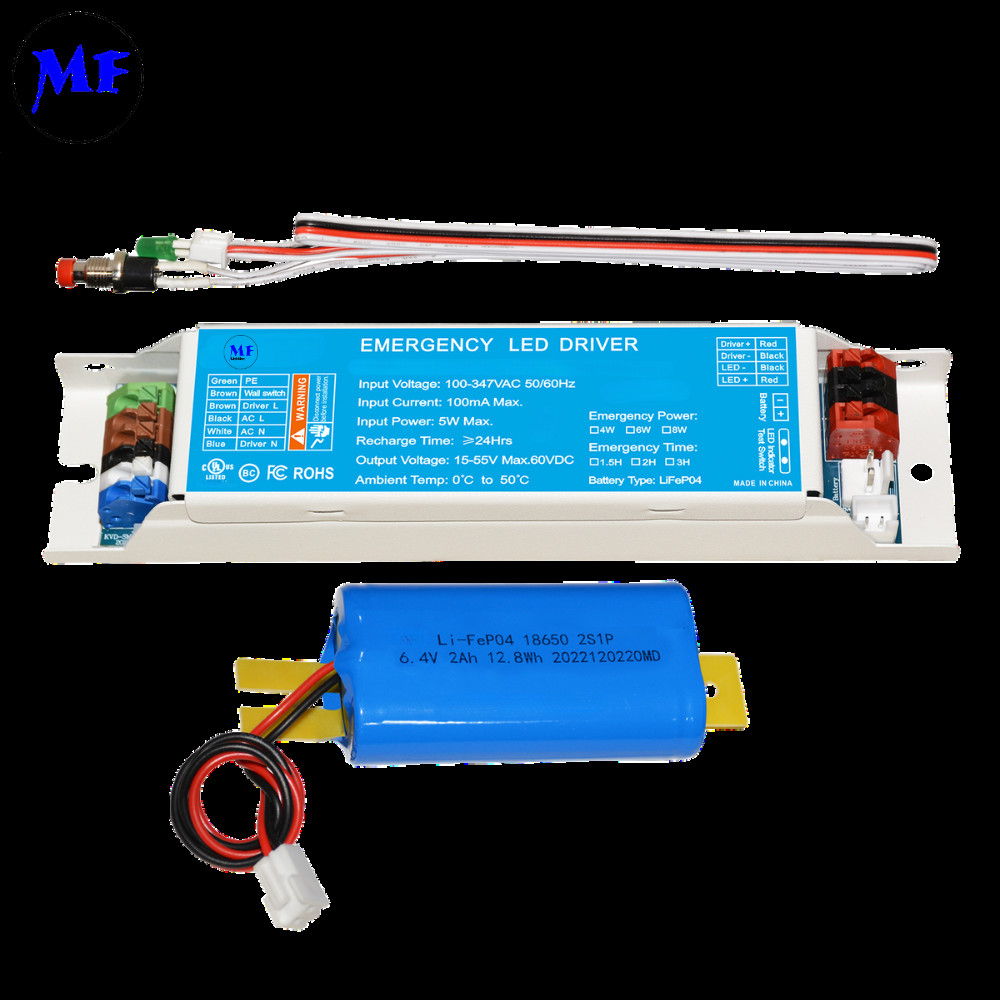

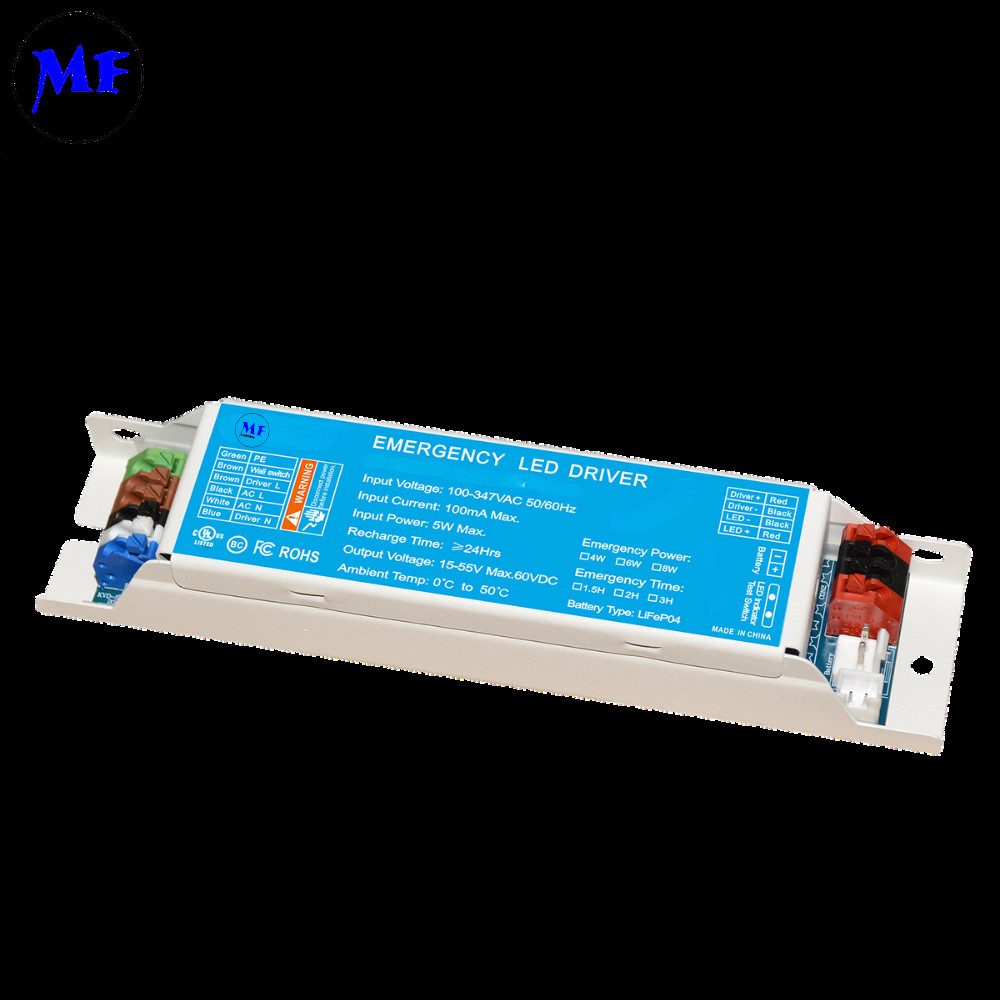

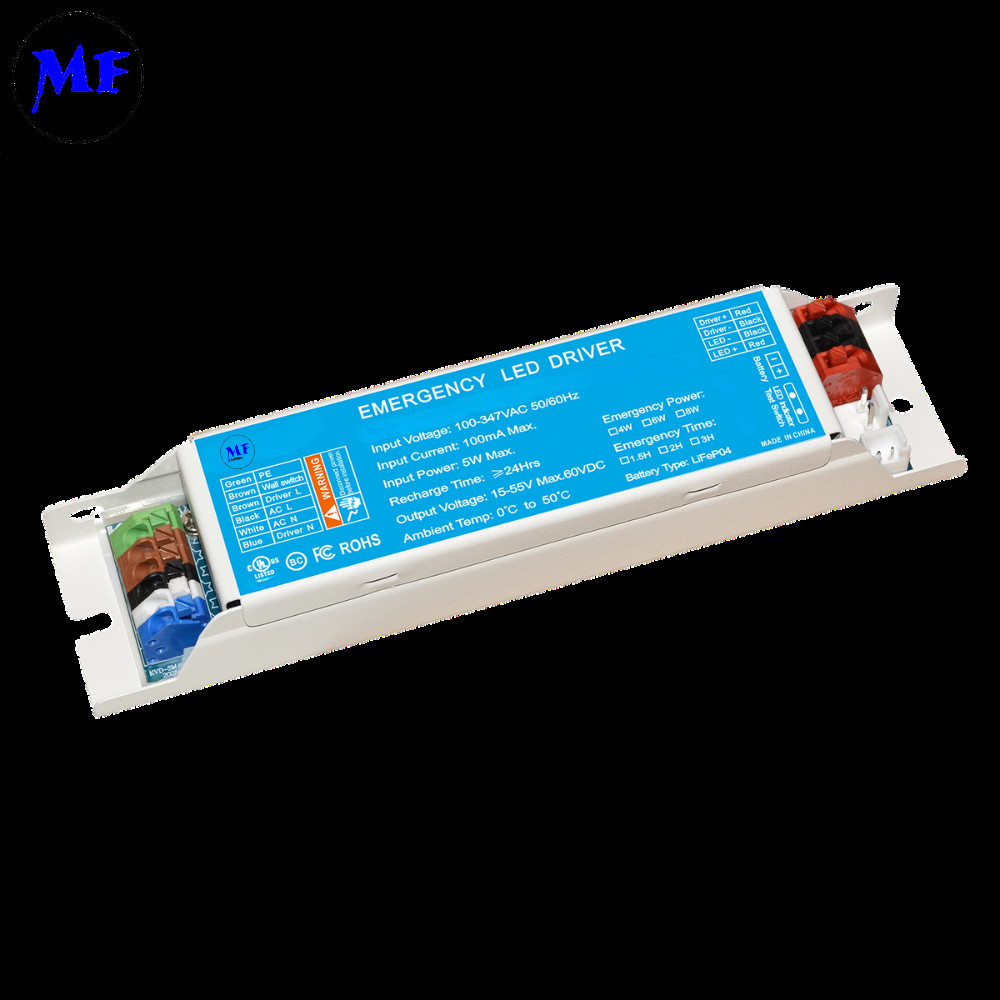

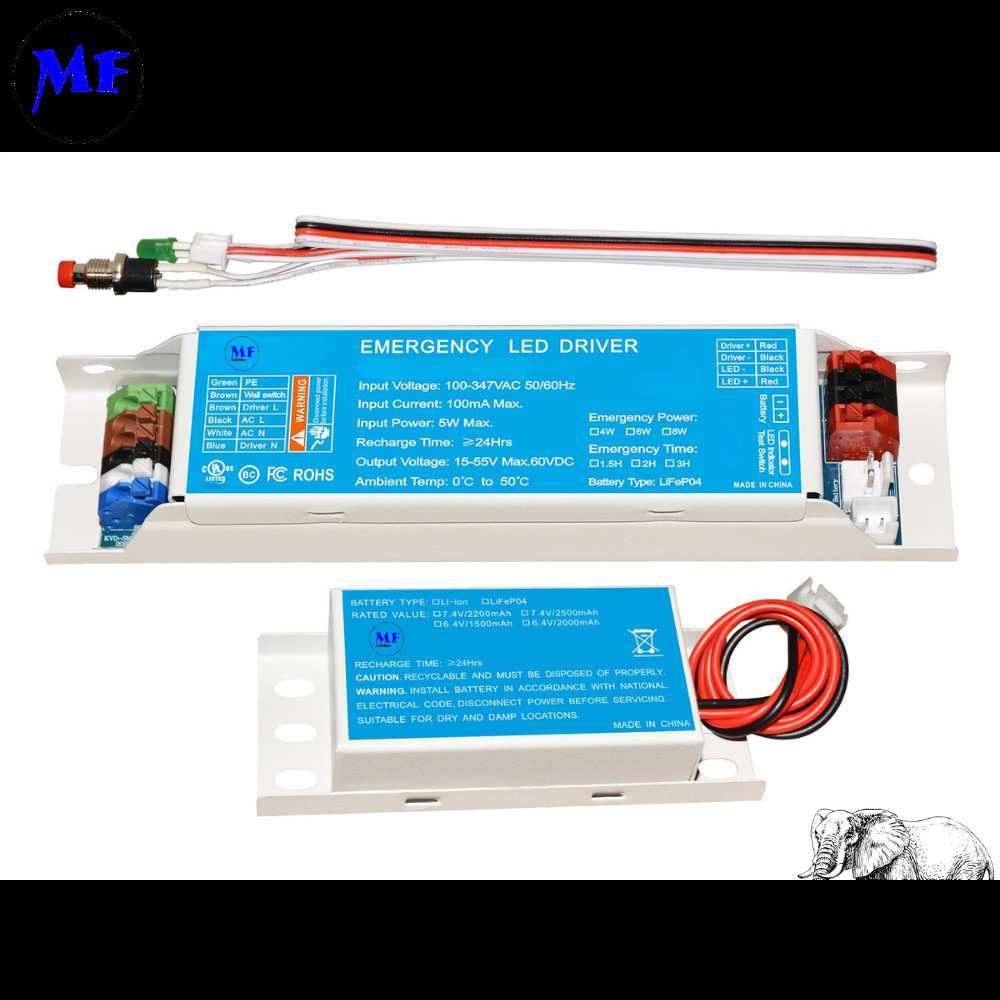

UL924/CSA Emergency Panic Light Ballast Powerpack LED Driver Certified Smart Indicator Li-ion 2500mAh 15W 1.5h 5-Year Warranty for Indoor Luminaires
1. Safety performance
Comply with CSA C22.2 NO.141, UL924 standard.
Battery has over-charge, over-discharge and short-circuit protection.
Comply with RoHS environmental requirements.
2. Stable operation
Li-ion battery capacity 2500mAh, voltage 14.8V, cycle 500 times.
Emergency time ≥ 1.5 hours, charging time ≥ 24 hours.
Charging current 250mA.
3. Convenient operation
Indicator light is always on (AC), slow flash (emergency), fast flash (fault).
Test switch: single press for 20 seconds for emergency, double press until the battery is discharged.
Connector can only be connected after installation is complete.
Key advantages:
1. High compatibility and versatility
Support 100-277Vac/347Vac wide voltage input, suitable for many regions and scenes.
Wide range of output current and voltage, compatible with a variety of LED lamps.
5-year warranty, reducing the risk of long-term use.
2. Efficient charging and energy saving
Short charging time, charging current 250mA, quick recovery of emergency capacity.
Low power consumption design, AC input power is only 7.0W, energy efficient.
Battery capacity of 2500mAh, providing sufficient emergency time.
3. Intelligent monitoring and convenient operation
Indicator light and test switch combination, quickly determine the working status and faults.
Emergency mode can be manually switched off to avoid misuse.
All-in-one design, easy to install and reduce wiring complexity.
| Universal Input Voltage | 100-277Vac/347Vac 50/60Hz |
| AC Input Current | 100mA max. |
| AC Input Power Rating | 7.0W max. |
| Battery Charging Current | 250mA |
| Charging Time | ≥24 Hours |
| Output Current and Voltage | 20-55V/60-260VDC |
| Emergency Time | ≥1.5H |
| Battery | Li-ion 2500mAh-14.8V |
| Output Power | 15W |
| Full Warranty | 5 Years |
| Temperature Rating Ambient | Li-ion 0°C to 50°C (32°F to 104°F) |
