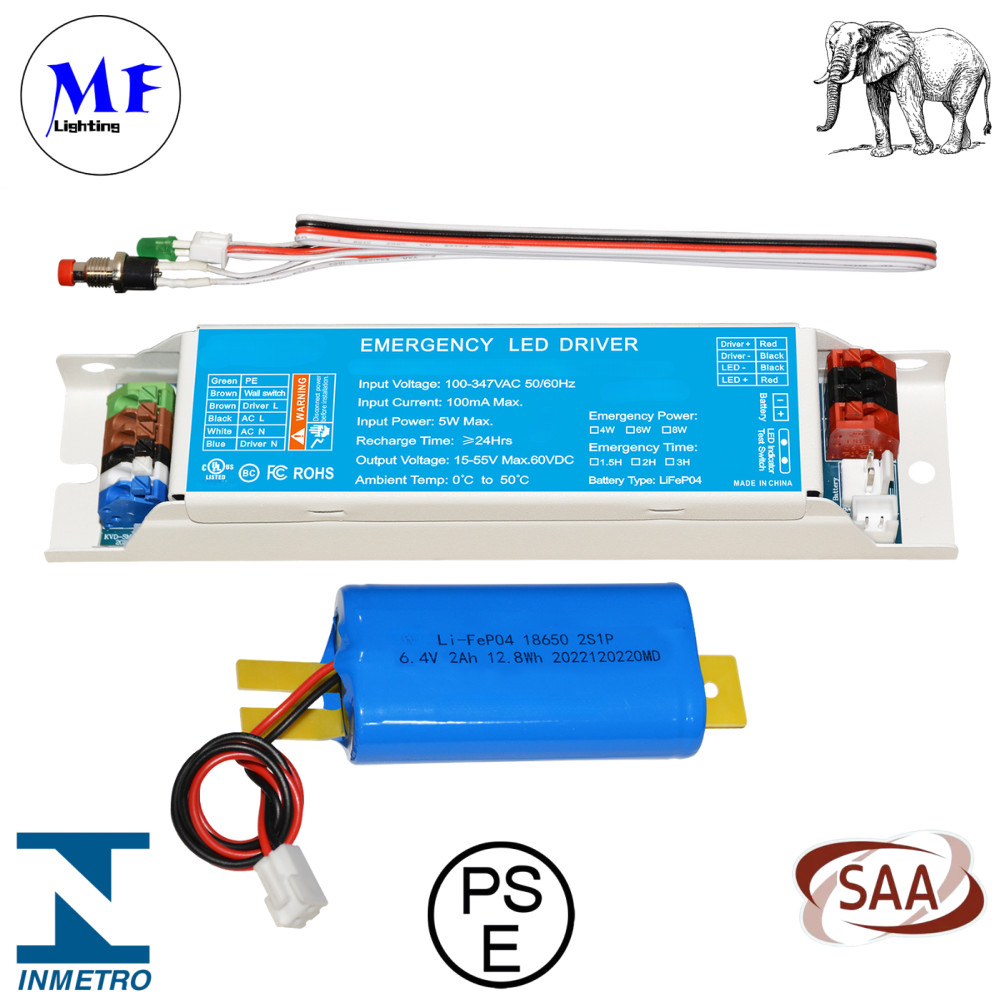

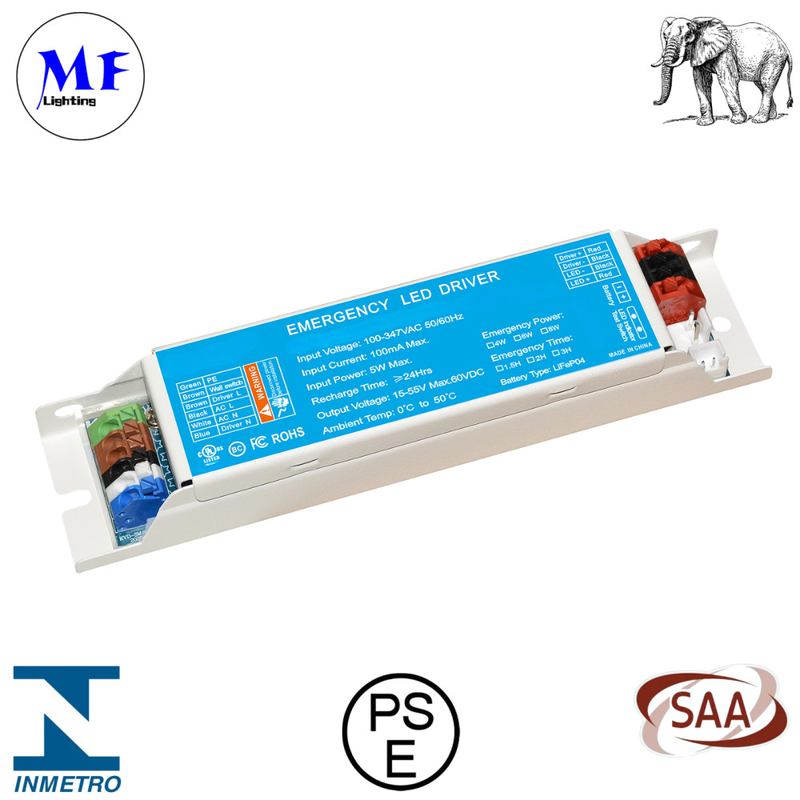

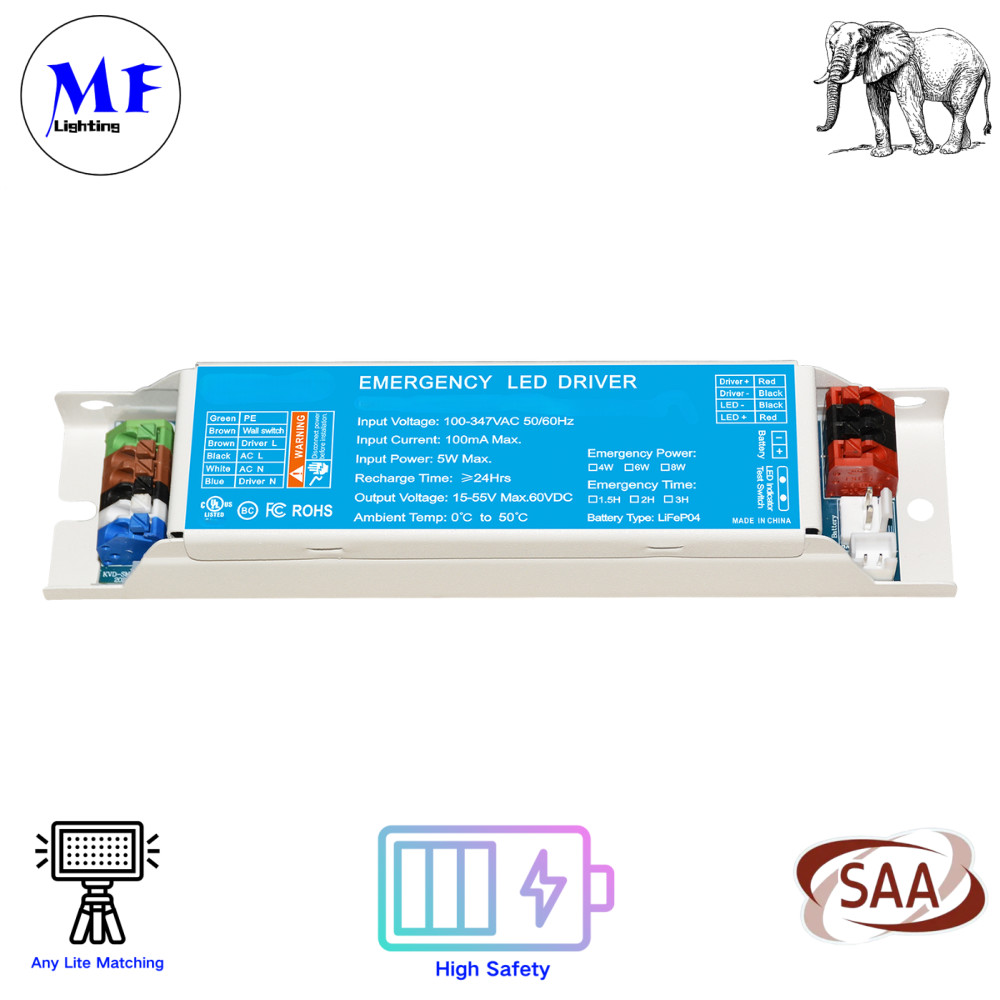

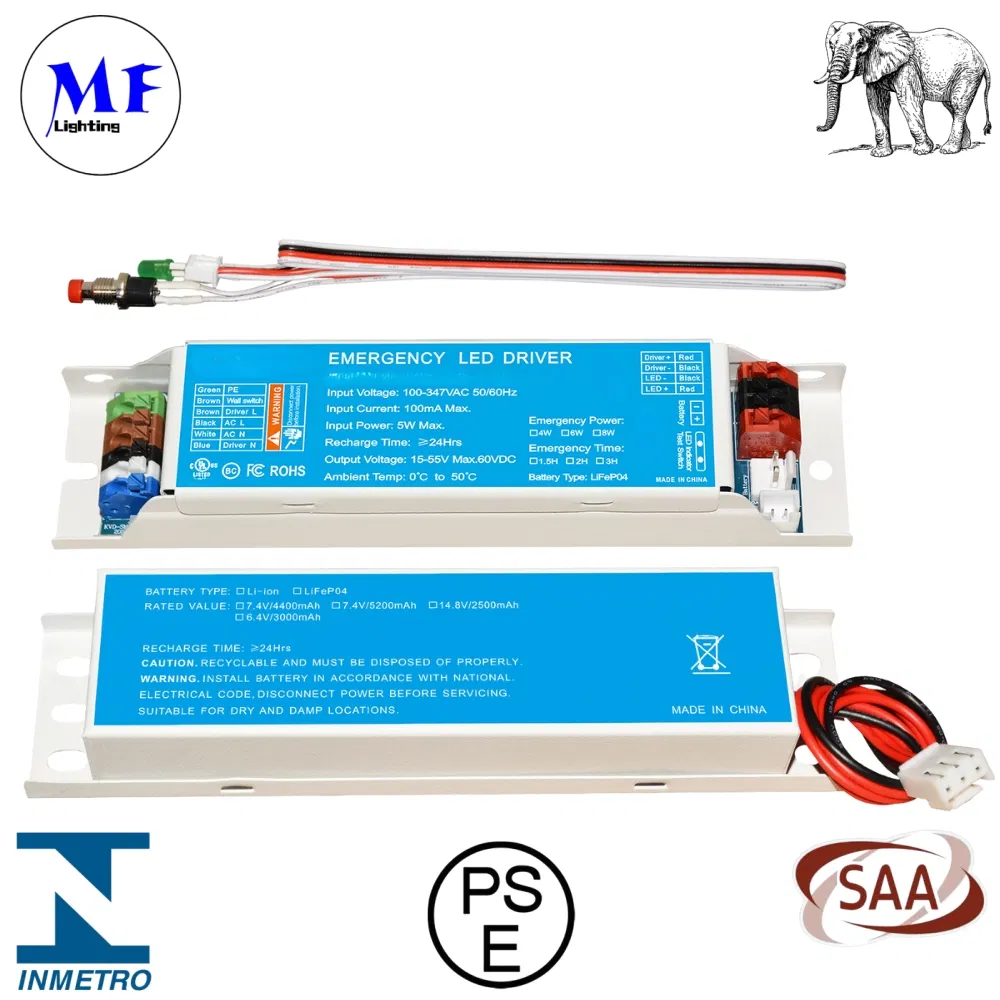

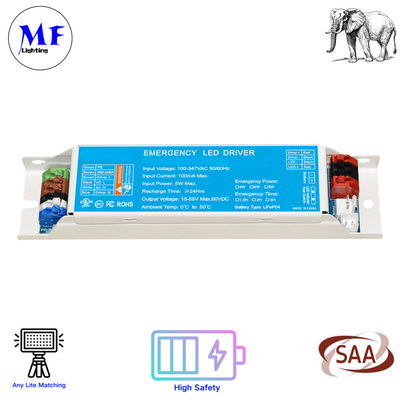

4W 6W 8W Li-FEP04 Battery LED Emergency Driver Panic Emergency Powerpack Backup Ballast Emergency Light Kit Panic Light Ballast

Mô tả sản phẩm

Product Description

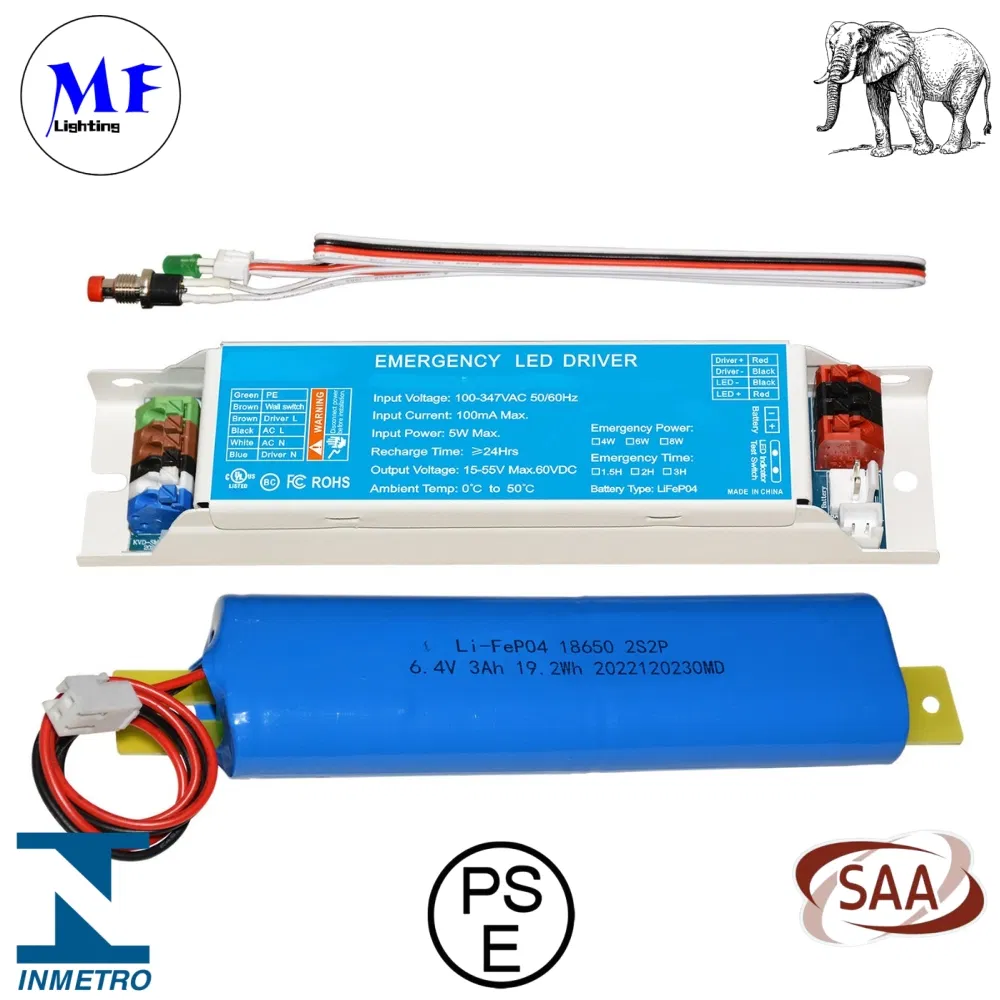

Factory Price 100-347Vac 5Years Warranty Emergency Driver Powerpack Backup Ballast Light Ballast Driver Kit Power Supply with 3 Hour Longevity Li-FEP04 Battery





Product Parameters

Input voltage	100-277 Vac 50/60Hz
AC Input current	100mA Max
AC Input Power Rating	5.0W max
Battery charging current	250mA
Output Current and Voltage	15-55VDC/60-240VDC
Battery charging time	≥24h Hours
Emergency Time	≥1.5H
Storage Temperature	-20-40ºC
Battery capacity:	Li-Fep04 2000mAh-6.4V
Output Power:	4W/6W/8W
Full Warranty:	5 Years
Temperature Rating Ambient:	Li-Fep04 0°C to 60°C (32°F to 104°F)

Product Features

1. Meet most of safety standards for lighting
2. Standard CSA C22.2 NO.141 UL924
3. External lithium iron phosphate battery
4. Battery protections: over charge protection over discharge protection short circuit protection
5. Indicator shows a variety working modes
6. The batteries Meet 2000 cycles of standard CH and standard DCH
7. RoHS compliant

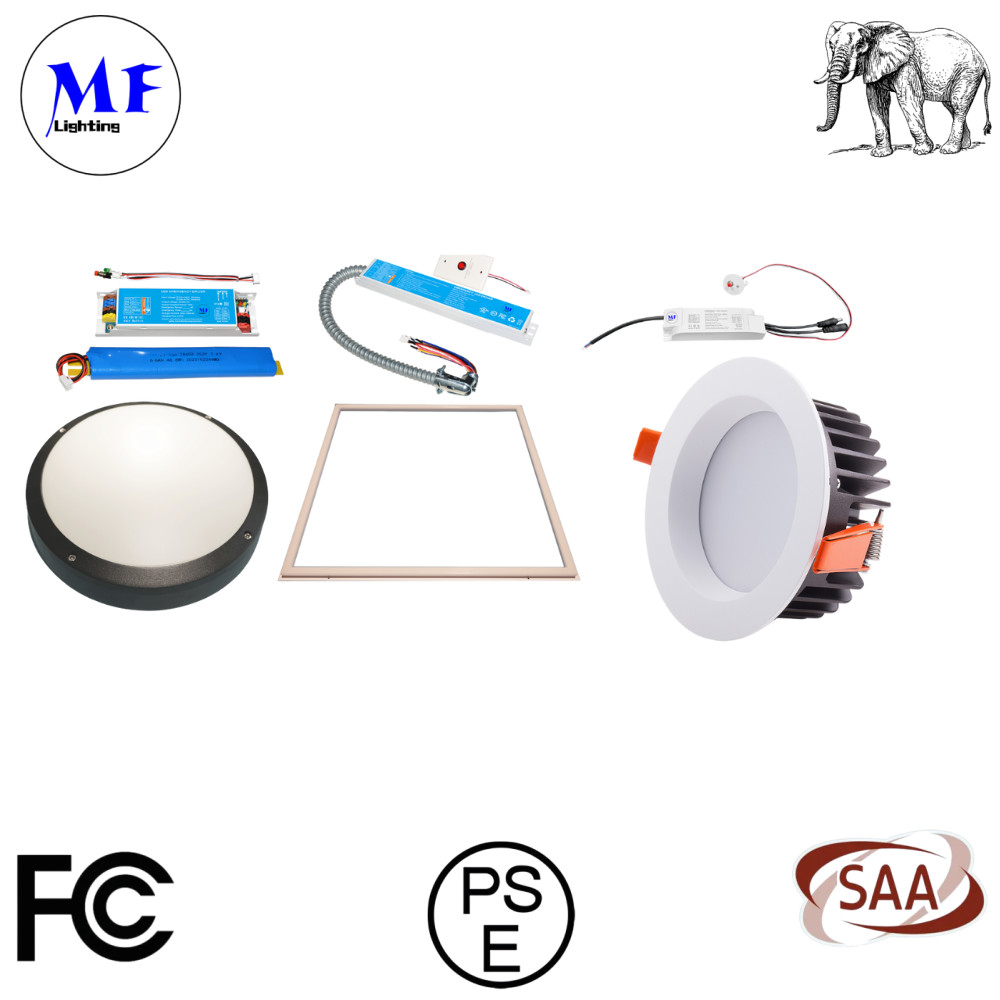

LED Emergency driver, Panic light ballast,panic emergency powerpack,emergency backup ballast,emergency ballast interter,emergency light kit,Led Emergency Battery Pack,Emergency Converter for triproof light down light ceiling light highbay light panel light

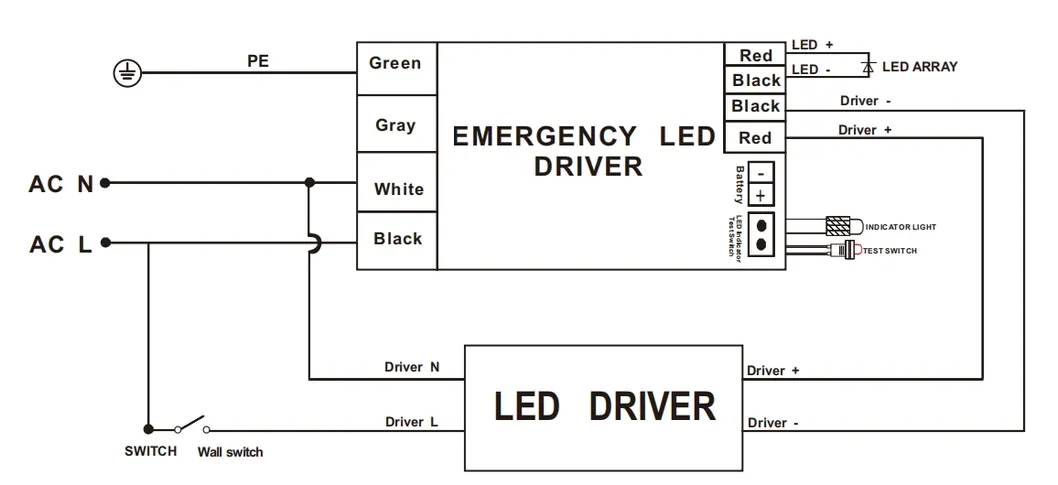

Wiring Diagram

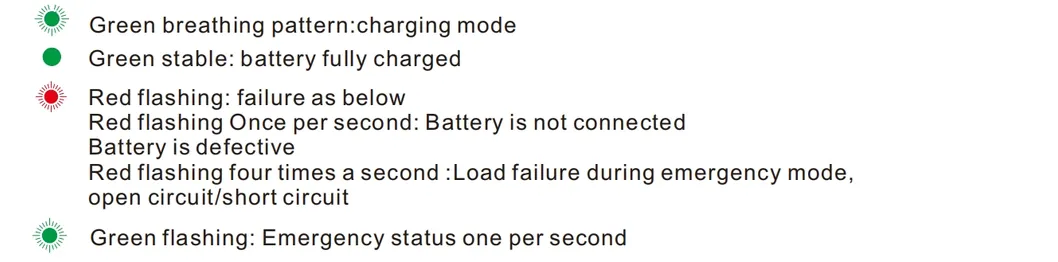

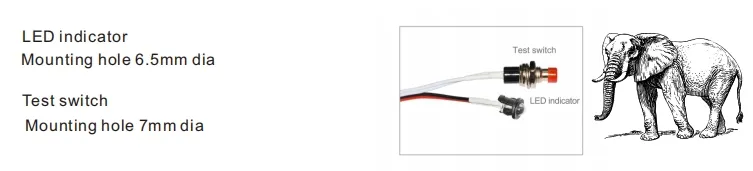

LED Indicator
Test Button
1:0S<Key≤2S,Enter a simulated state of emergency,the green indicator blinks
once every second,keep emergency status for 10±1 seconds and back to normal status
2:In simulated emergency situations,
Short press once to exit and return to the normal charging state
3:0S<Key≤1S,In the emergency state, the emergency state is turned off.
Quarterly self-test
when emergency driver is on power,every 180 days± 1 day
automatically enter the emergency state,emergency duration
until the battery is discharged,then return to power-on status.

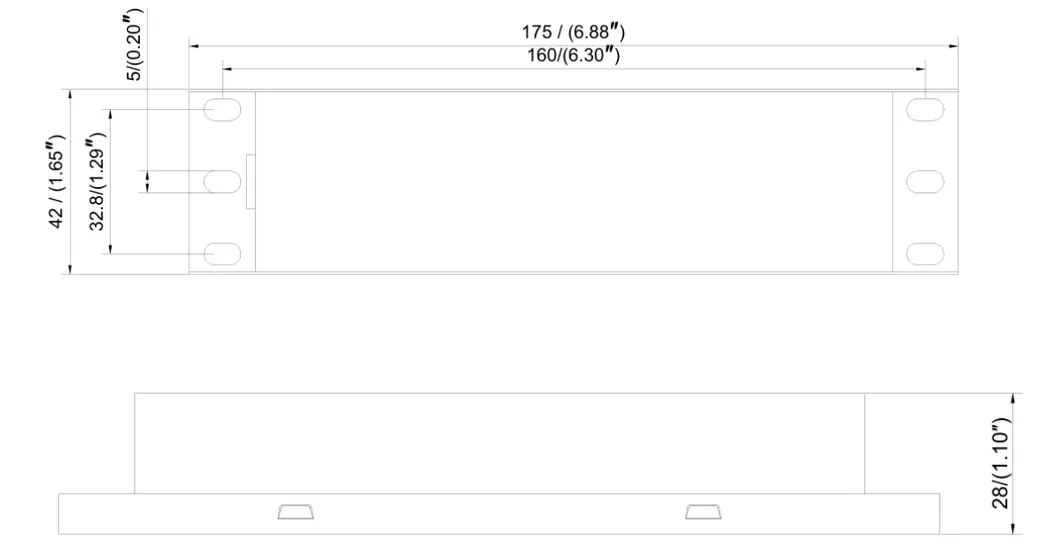

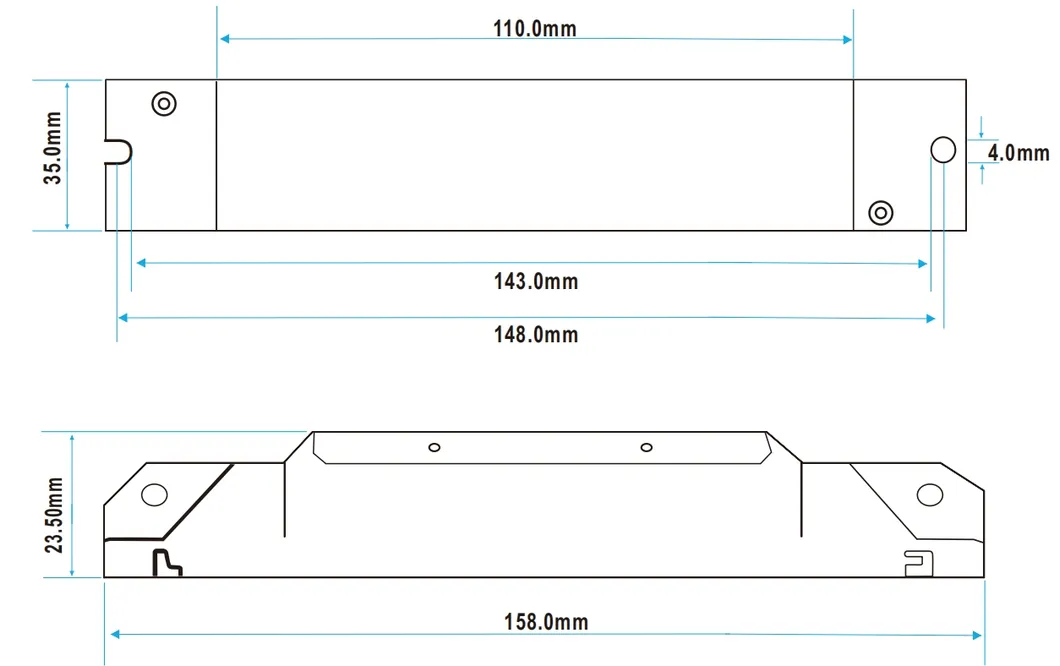

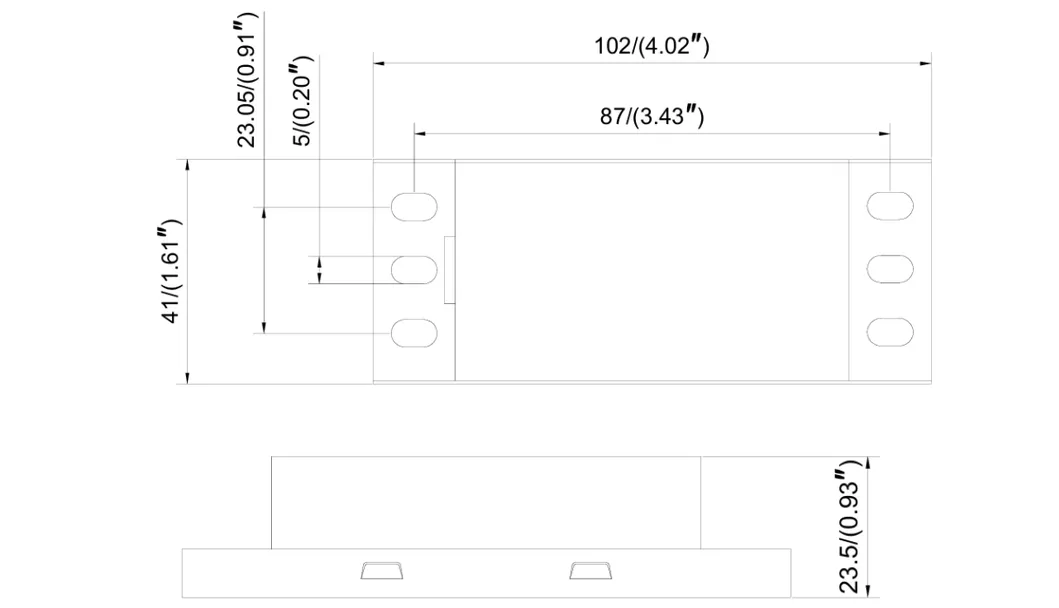

Product Dimensions

Product Installation

1. If it is used for the first time or it does not enter the normal working state after being over-discharged, it is necessary to connect the main power to activate the emergency power supply and charge it for 24 hours. Please use the original emergency battery provided.
2. When installing and using it, please keep it away from heat sources and only use it within a certain working temperature range.
3. It should be stored in a cool, dry environment.
4. After prolonged storage, recharge at least once every 6 months as needed.
5. Emergency driver testing must be longer than 1 minute, and don't press the testing button frequently.



Product Applications

1. Offices: Ensures emergency lighting activation during power outages to maintain illumination in workspaces, corridors, and exits while complying with safety standards.
2. Exhibition Halls & Museums: Powers emergency lighting with <1-second switchover to backup power for critical areas, protecting exhibits and preventing risks from darkness.

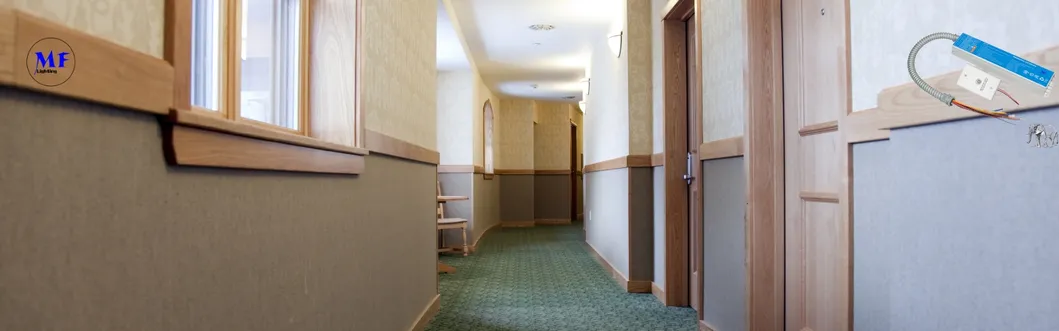

3. Hotels & Hospitality: Integrates with fire systems to activate evacuation lighting in public areas and maintain safety lighting in guest rooms during outages.
4. Villas & Residences: Supports smart home emergency lighting by maintaining illumination in key areas (stairs, entrances) during outages and monitoring battery status via apps.
5. Clubs & Entertainment Venues: Enables quick emergency lighting activation in high-energy spaces, prioritizing safe evacuation routes and working with dynamic lighting systems for event safety.

6. Retail & Commercial Spaces: Maintains basic lighting for product displays during outages and links with fire sensors to activate full emergency mode for safe customer evacuation.
7. Transportation & Public Hubs: Meets strict fire safety standards (CE, UL) with 72+ hours backup power for exits and corridors in airports, subways, and other critical infrastructure.

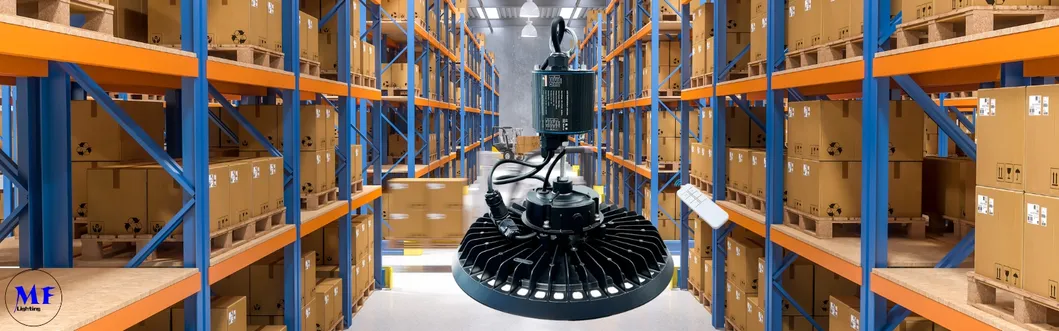

8. Industrial & Warehouses: Provides stable emergency power for high-power LED fixtures with wide voltage input (90-264V), ensuring reliable activation in harsh industrial environments.



Packageing & Shipping
