IP20 Panic Light Ballast Emergency Ballast Interter Emergency Light Kit LED Emergency Driver for Triproof Light Down Light Ceiling Light

Product description

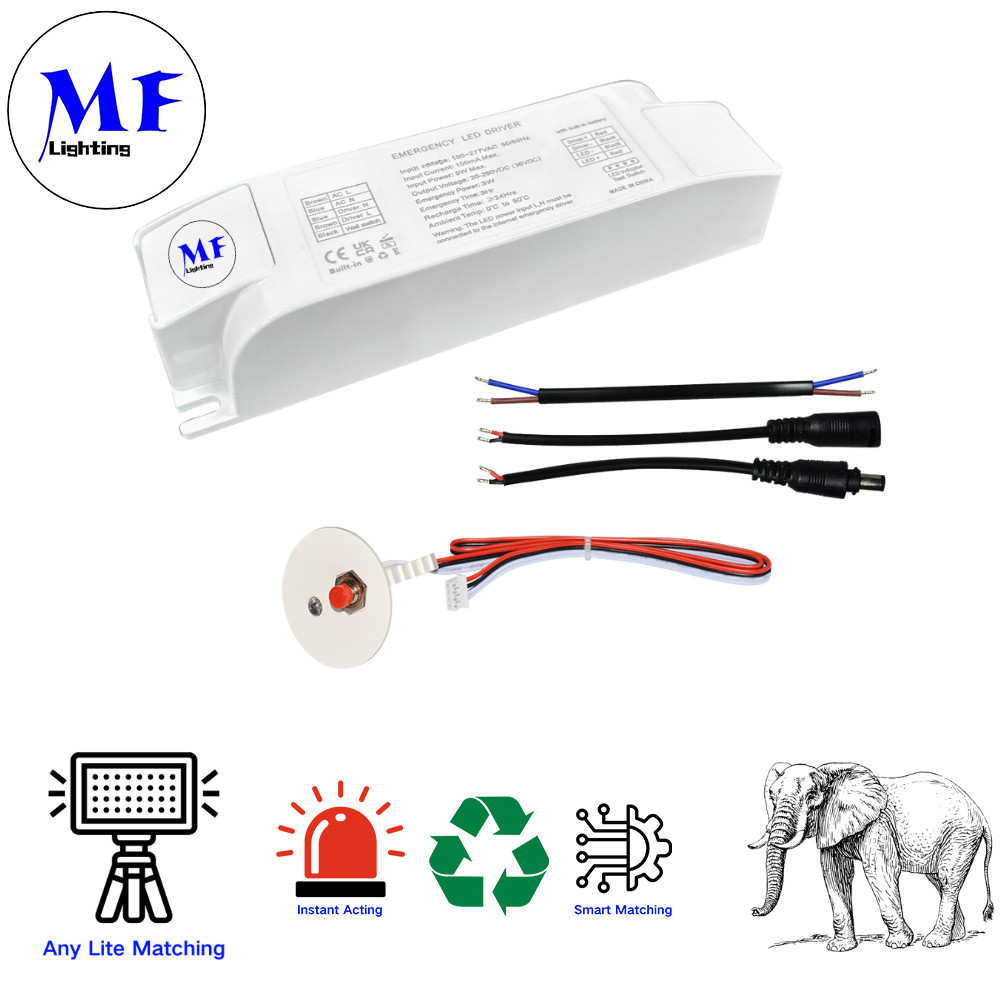

The MF-188X LED Emergency Driver is a compact (115×85×28mm) Li-FePO4-compatible solution delivering 3W/3H emergency power with zero standby current. Featuring multi-protection (overcharge/discharge/short-circuit), it offers visual diagnostics via LED indicators and supports manual testing plus automatic 180-day self-test cycles. The IP20-rated unit operates up to 75ºC, meets IEC/EN standards, and requires 24-hour initial charging with 6-month maintenance recharges. Backed by a 3-year warranty, this energy-efficient driver (<5W input) ensures reliable emergency lighting with its 4000mAh battery capacity and robust 3000V electric strength protection.

Smart Protection:
Overcharge/discharge, overload, and short-circuit safeguards
Zero Standby Drain:
0μA static current when powered off
Advanced Diagnostics:
LED indicators for charging (green), faults (red flashing), and emergency status
Flexible Testing:
Manual emergency simulation (10s), auto semi-annual self-test (180-day cycle)
Robust Design:
IP20 rated, 75ºC tolerance, compliant with IEC/EN standards
Usage:
Requires 24h initial charge, 6-month storage recharge, and >1min test duration. 3-year warranty.

Features

self-detect
constant power emergency output
Suits for LED fitting with external LED driver
External battery, Li-ion/Li-FePO4/Ni-CD
With multi-protection function;
battery overcharge protection;
battery over-discharge protection;
output overload protection;
short-circuit protection.
Accessary test switch and LED indicator
In the state of the power off, to connect with the battery, static current at the battery terminal is 0uA

Specifications:

​

Input voltage	220-240Vac, 50/60Hz
Input current	0.003A Max. @230Vac
Input wattage	<5.0W
Power factor	≥0.5 @230 Vac
Battery charging	350mA Max.
Battery charging time	≤24Max
Emergency output Voltage	DC25-185VMax.200VDC
Emergency power	3W
Emergency time	3H
Battery	Li-FePO4/26650/4000mAh-3.2V
Storage Temperature	-20-40ºC
Electric Strength	3000Vac, 5mA (input to output)
IP Rating	IP 20
Maximum shell temperature	75ºC
Warranty	3 Years
Relevant standard	IEC 61347-2-7 / IEC 61347-1 / EN55015

​

Wiring Diagram

• AC Input: Brown (Line) and Blue (Neutral) wires for 220-240V power supply

• LED Connection: Red (positive) and Black (negative) terminals for LED output

• Battery: Dedicated charging wires (color not specified) for Li-FePO4 battery connection

• Switch Control: Includes wall switch integration

• Wire Specs: Uses 0.5-1.5mm² cables with 7-8mm stripping length

Measure

​LED and test button status

LED INDICATOR
Green breathing pattern: charging mode
Green stable: battery fully charged
Red flashing: failure as below
Red flashing Once per second: Battery is not connected
Battery is defective
Red flashing four times a second: Load failure during emergency mode, open circuit/short circuit
TEST BUTTON
1: 0S<Key≤2S, Enter a simulated state of emergency, the green indicator blinks once every second, keep emergency status for 10±1 seconds and back to normal status
2: In simulated emergency situations, Short press once to exit and return to the normal charging state
3: 0S<Key≤1S. In the emergency state, the emergency state is turned off.
QUARTERLY SELF-TEST
when emergency driver is on power, every 180 days±1 day automatically enter the emergency state, emergency duration until the battery is discharged, then return to power-on status.

​Installation Instructions

1: If it is used for the first time or it does not enter the normal working state after being over-discharged, it is necessary to connect the main power
to activate the emergency power supply and charge it for 24 hours. Please use the original emergency battery provided
2: When installing and using it, please keep it away from heat sources and only use
it within a certain working temperature range.
3: Should be stored in a cool, dry environment.
4: After prolonged storage, recharge at least once every 6 months as needed.
5: Emergency driver testing must be longer than 1min, don't press the testing button frequently.

​Application

Application:
school,hospital,subway,train station,shoppingmall,supermarket,airport,office, factory,hotel,basement,parking lot,public place
