Main-Standby Adjustable Wide Voltage Input UV-Resistant Polycarbonate IP66 Low-Intensity Dual-Lamp Aviation Obstacle Obstruction Light For Bridge

Số lượng đặt hàng tối thiểu : 1pcs chi tiết đóng gói : 254 × 90 × 210
Thời gian giao hàng : 7 ngày Điều khoản thanh toán : L/C, D/A, D/P, T/T, Western Union
Khả năng cung cấp : 5000 chiếc / tháng
Nguồn gốc: Trung Quốc Hàng hiệu: MF
Chứng nhận: CCC, CE, EMC, ETL, GS, RoHS, SAA Số mô hình: MF-LI-B2-D

Thông tin chi tiết

Nguồn ánh sáng: dẫn Màu sắc có sẵn: Màu đỏ (màu khác là tùy chọn
cường độ: ≥32,5cd (loại B), những người khác tùy chọn (10cd, 100cd, v.v. Lượng đầu ra ngang: 360
Phân kỳ dọc: ≥10 Đặc điểm đèn flash: Đốt ổn định/20/30/60 có thể điều chỉnh
Chế độ làm việc: Chính & chờ (các chế độ khác là tùy chọn) Tuổi thọ đèn LED: Khóa học như là lựa chọn. Trải nghiệm cuộc sống (giờ)> 100
điện áp hoạt động: DC(48VDC) &AC(110-240VAC) hoặc các loại khác Sức mạnh: 5W
Bảo vệ mạch: tích hợp Vật liệu cơ thể: Polycarbonate
Vật liệu cơ bản: nhôm đúc
Làm nổi bật:

UV-Resistant Aviation Obstruction Light

,

Adjustable Aviation Obstruction Light

Mô tả sản phẩm

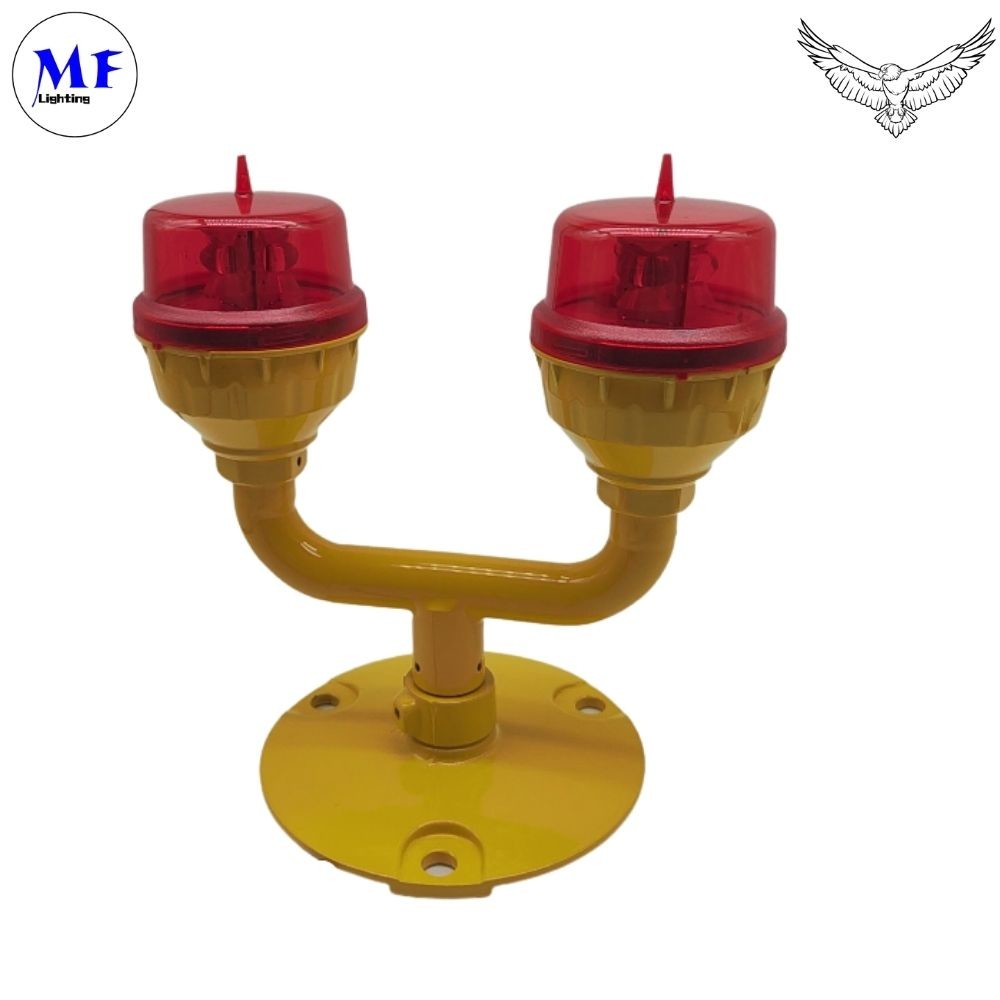

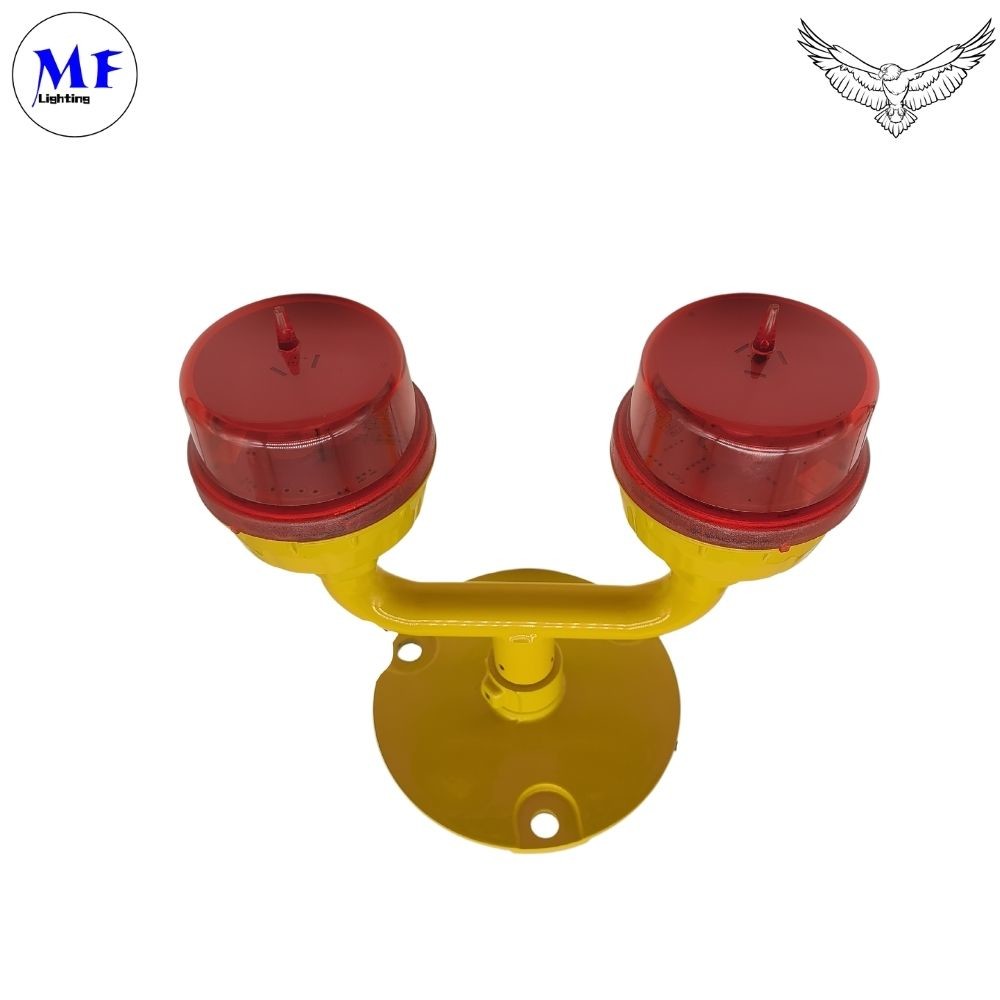

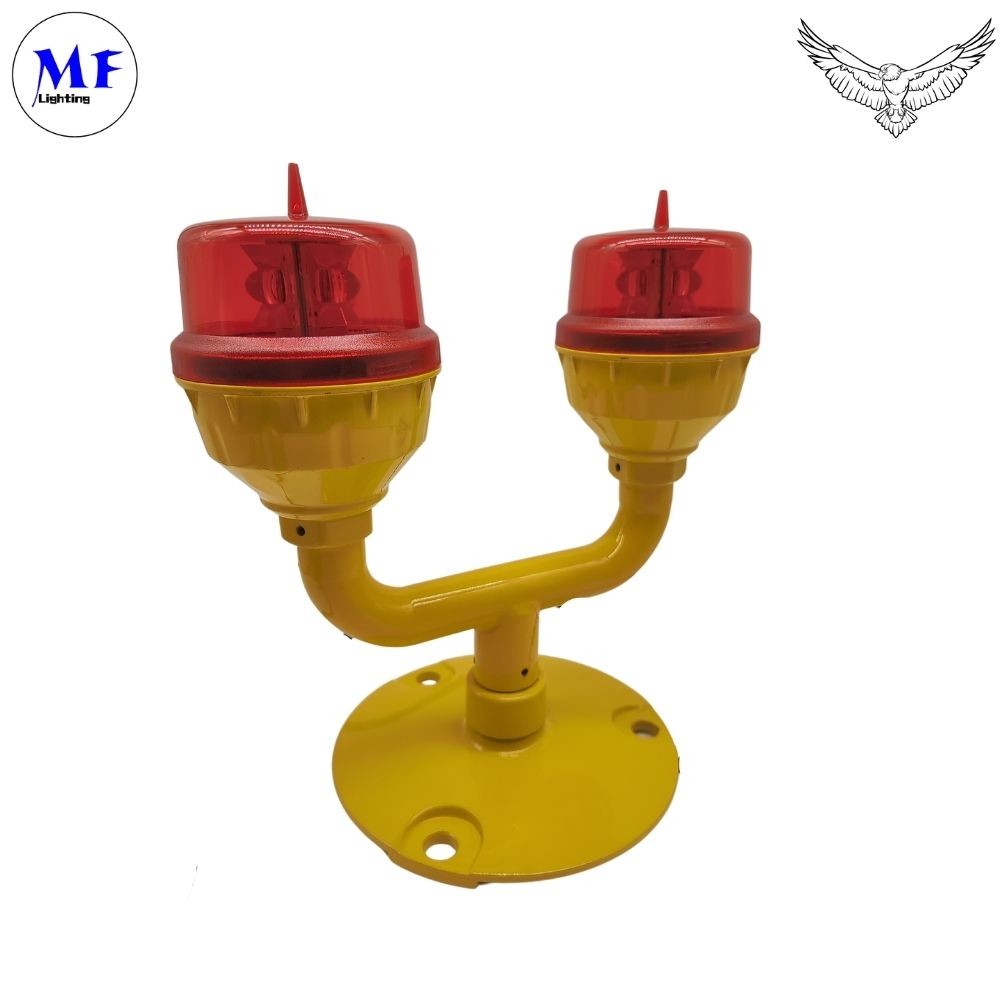

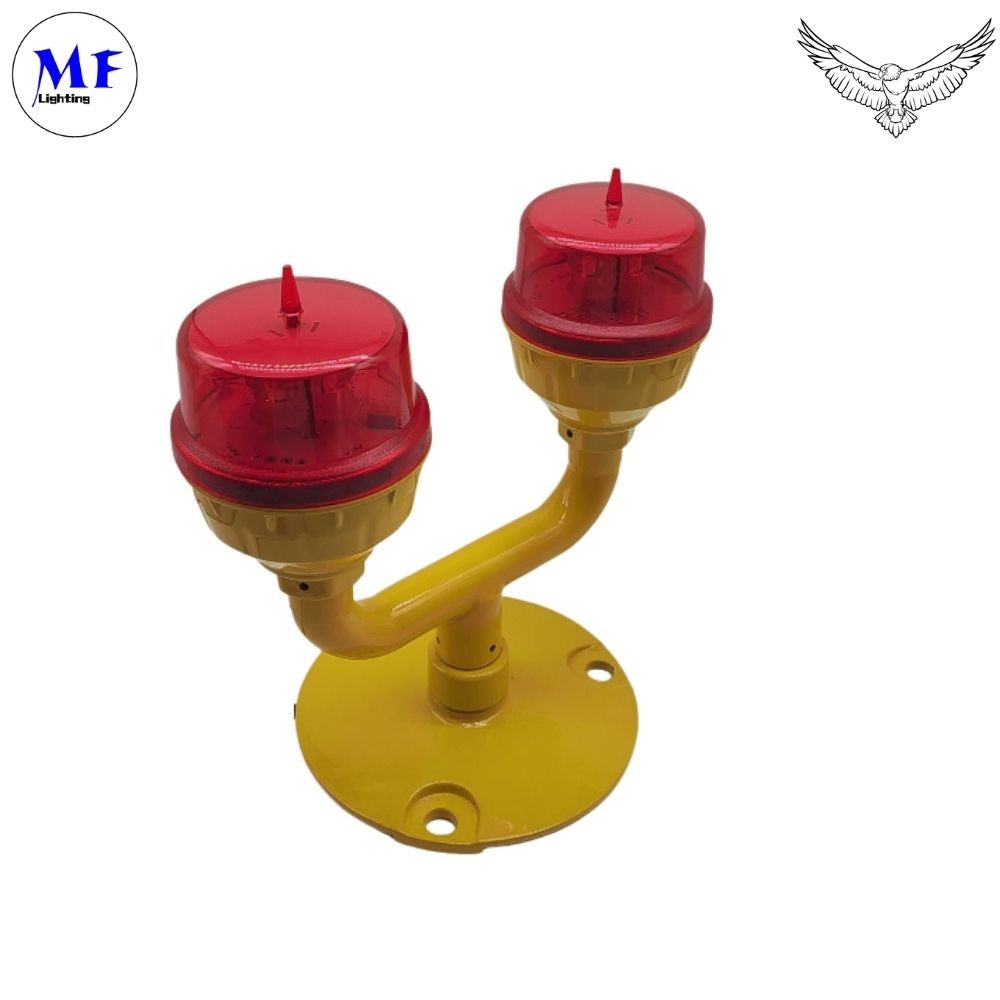

Main-Standby Adjustable Wide Voltage Input UV-Resistant Polycarbonate IP66 Low-Intensity Dual-Lamp Aviation Obstacle Obstruction Light For Bridge



Features:

1. High reliability

Automatic switching of main and backup lamps to ensure continuous marking.

Lightning protection, in accordance with IEC standard.

Integrated circuit protection against abnormalities.

2. Strong environmental adaptability

IP66 waterproof rating.

Operating temperature -40ºC to 65ºC, storage temperature -55ºC to 70ºC.

Resistant to wind speed up to 240km/h.

3. Flexible Design

Support DC48V and AC110-240V power supply.

Built-in light control, automatic switching.

Multiple mounting methods for ease of use.



Key Advantages:

1. High Reliability

Main & standby mode ensures continuous operation.

Built-in surge protection.

Long LED life (>100,000 hours).

2. Durability

IP66 waterproof rating.

UV-resistant polycarbonate cover.

Corrosion-resistant die-casting aluminum base.

3. Adaptability

Dual power supply (DC & AC).

Automatic day/night operation.

Optional GPS sync and solar power.





Specifications

Light Source LED
Available Colors Red (Other color is optional)
Intensity (cd) ≥32.5cd (type B), others optional (10cd, 100cd, etc)
Horizontal Output (degrees) 360
Vertical Divergence (degrees) ≥10
Flash Characteristics Steady-burning/20/30/60 adjustable
Working Mode Main & stand by (other modes are optional)
Operation Mode Dusk-to-dawn Automatically as standard. 24 hours operation as option.
LED Life Experience (hours) >100,000
Operating Voltage DC(48VDC) & AC(110-240VAC) or others





Power (W) 5
Electrostatic IEC61000-4-2 Contact discharge 8kV
Circuit Protection Integrated
Body Material Polycarbonate
Base Material Die-casting aluminum

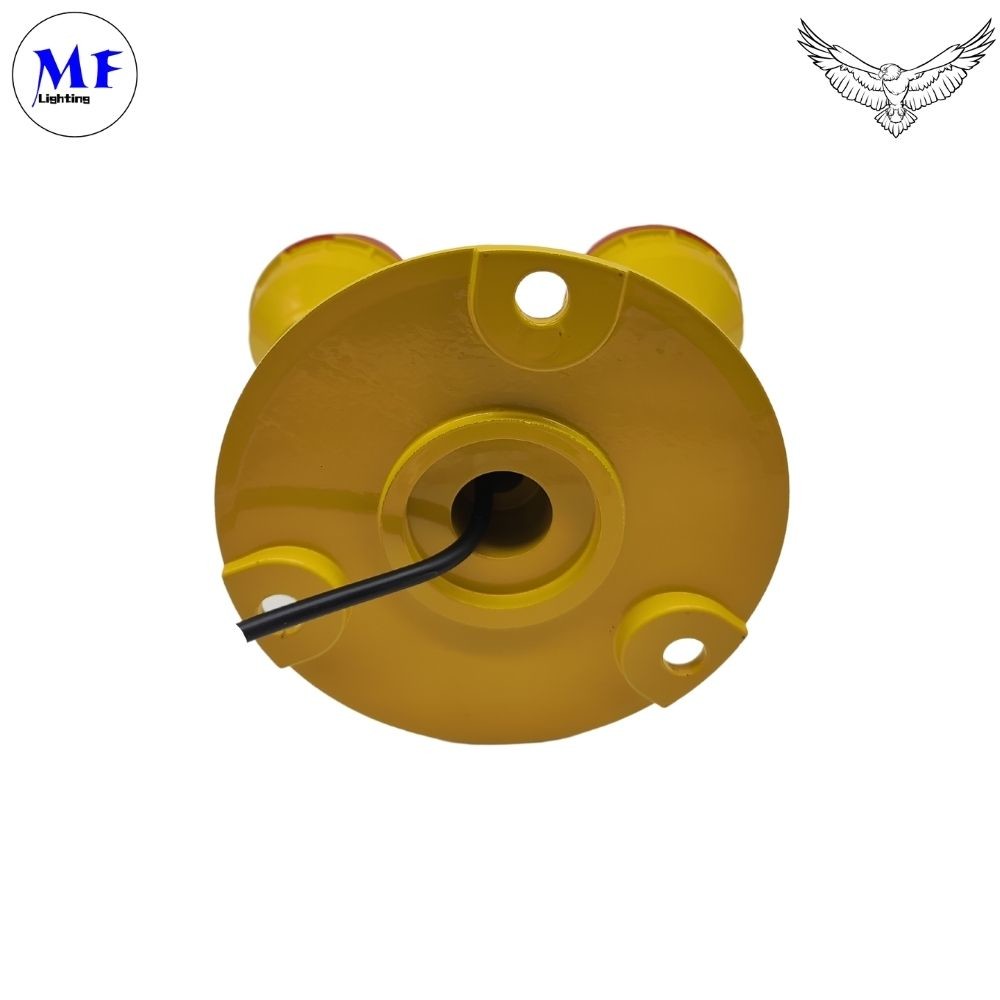

Mounting 3/4 inch pipe thread or D140mm×M10*3
Dimension (mm) 254×90×210 or 254×165×250
Weight (kg) 1.5 or 2
Product Life Expectancy 10 years plus



Main-Standby Adjustable Wide Voltage Input UV-Resistant Polycarbonate IP66 Low-Intensity Dual-Lamp Aviation Obstacle Obstruction Light For Bridge 0

Main-Standby Adjustable Wide Voltage Input UV-Resistant Polycarbonate IP66 Low-Intensity Dual-Lamp Aviation Obstacle Obstruction Light For Bridge 1

Main-Standby Adjustable Wide Voltage Input UV-Resistant Polycarbonate IP66 Low-Intensity Dual-Lamp Aviation Obstacle Obstruction Light For Bridge 2

Main-Standby Adjustable Wide Voltage Input UV-Resistant Polycarbonate IP66 Low-Intensity Dual-Lamp Aviation Obstacle Obstruction Light For Bridge 3

Main-Standby Adjustable Wide Voltage Input UV-Resistant Polycarbonate IP66 Low-Intensity Dual-Lamp Aviation Obstacle Obstruction Light For Bridge 4

Main-Standby Adjustable Wide Voltage Input UV-Resistant Polycarbonate IP66 Low-Intensity Dual-Lamp Aviation Obstacle Obstruction Light For Bridge 5

Main-Standby Adjustable Wide Voltage Input UV-Resistant Polycarbonate IP66 Low-Intensity Dual-Lamp Aviation Obstacle Obstruction Light For Bridge 6

Main-Standby Adjustable Wide Voltage Input UV-Resistant Polycarbonate IP66 Low-Intensity Dual-Lamp Aviation Obstacle Obstruction Light For Bridge 7

Main-Standby Adjustable Wide Voltage Input UV-Resistant Polycarbonate IP66 Low-Intensity Dual-Lamp Aviation Obstacle Obstruction Light For Bridge 8
