Factory Price 10W 300-350lm Zoom 15-36° LED Shapeable Commercial Track Lighting Contour Spotlight Track Light

Liên hệ với bây giờ

Thông tin chi tiết
Quyền lực:	10W	Quang thông:	300-350lm
Góc chùm tia:	15-36°	Độ chính xác màu:	Ra ≥97
Nhiệt độ màu:	2700K/3000K/4000K	Tỷ lệ biến dạng:	.60,6%
Đường kính tản nhiệt:	Ø38mm	Cân nặng:	0,36kg
Xoay theo chiều dọc:	90°	Xoay ngang:	355°
Đánh giá độ chói thống nhất:	UGR<19	Độ dẫn nhiệt:	226W/mK
Đường kính ống kính:	¢38mm	Chiều cao sản phẩm:	H178.5mm
Theo dõi dây:	4 dây
Làm nổi bật:	10W LED shapeable track light , 300-350lm contour spotlight , zoom 15-36° commercial track lighting

Mô tả sản phẩm

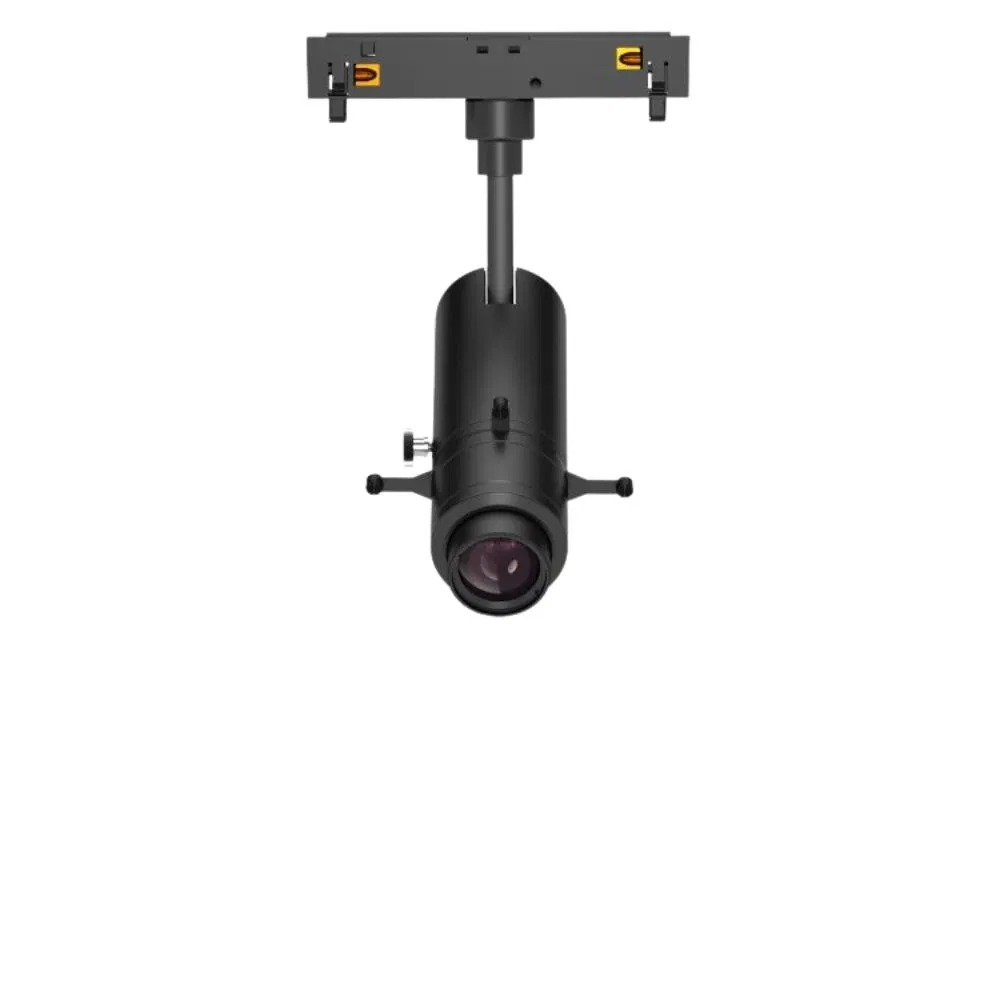

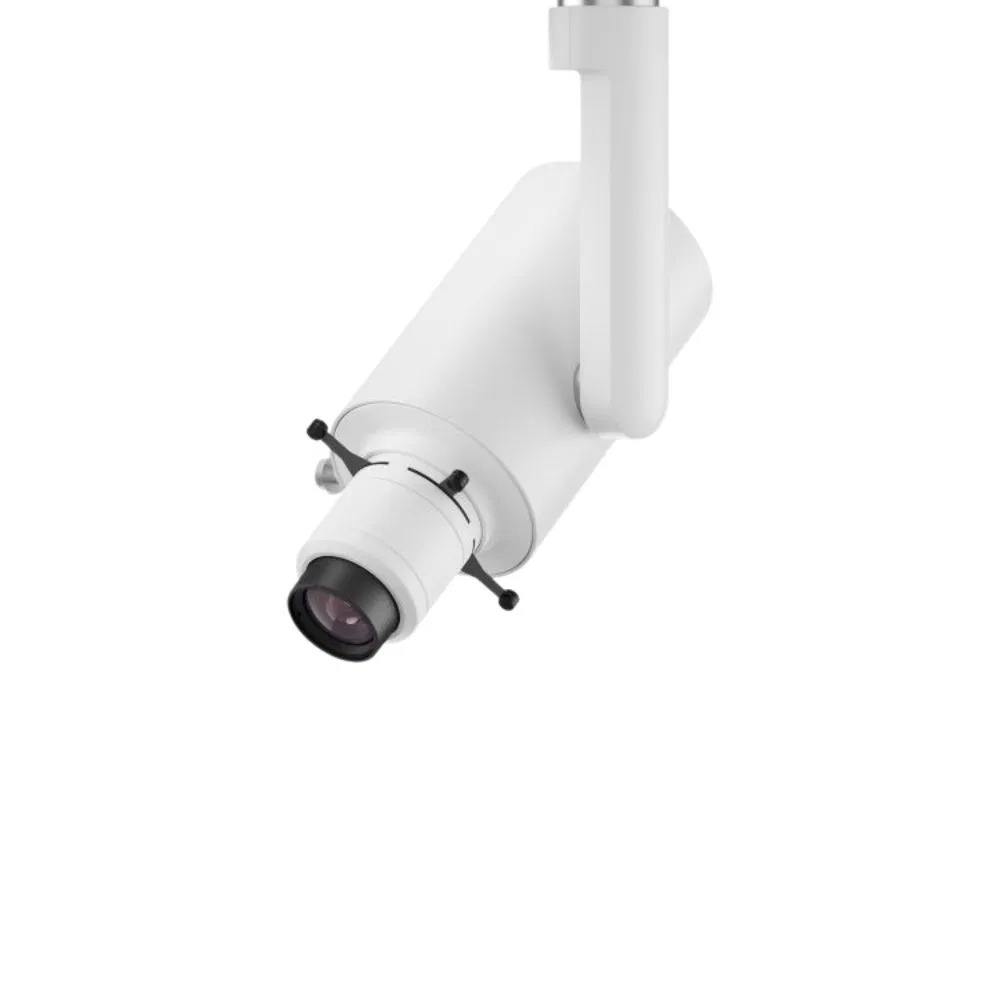

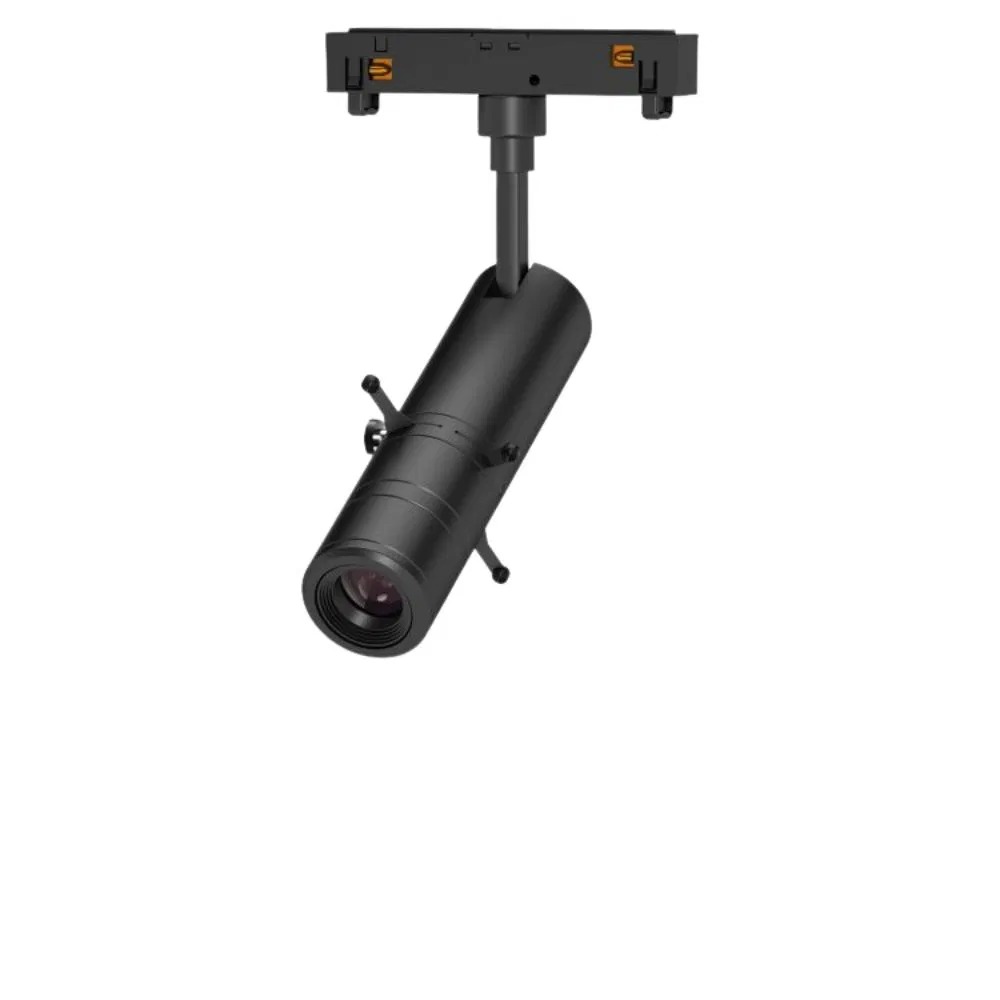

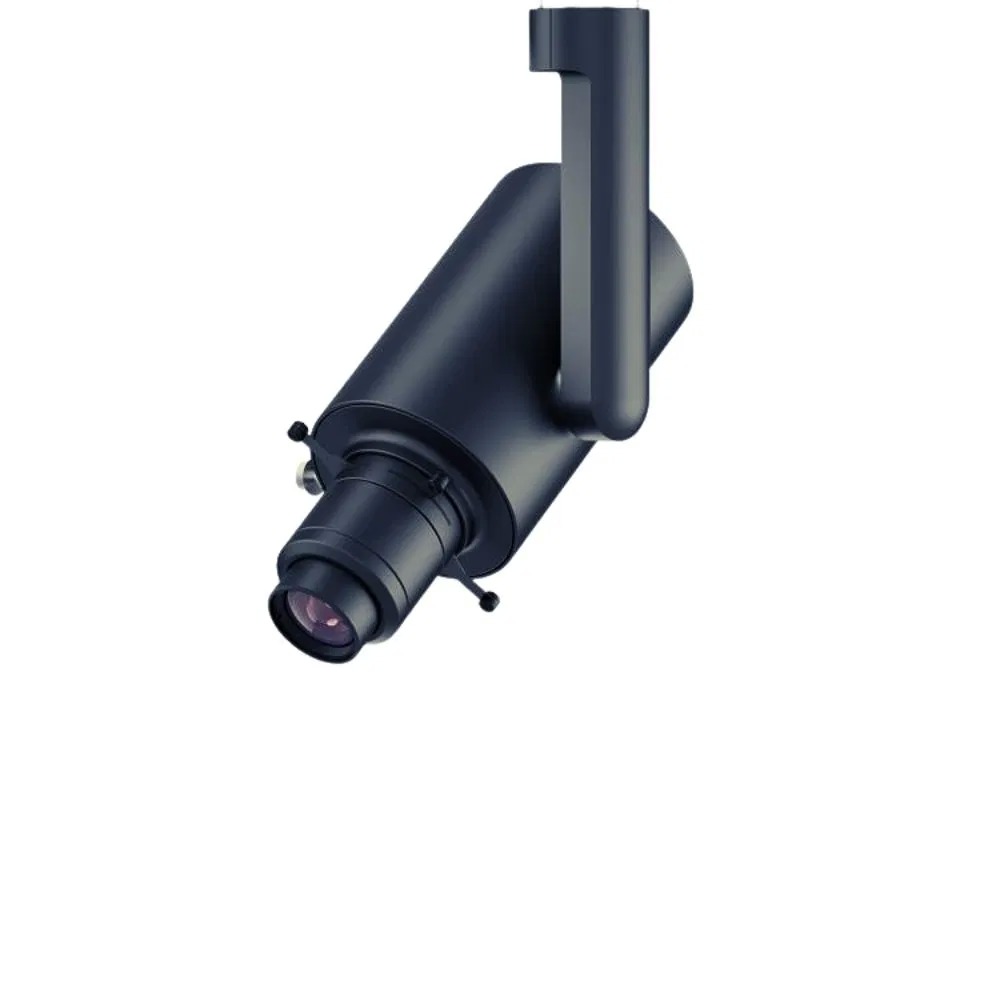

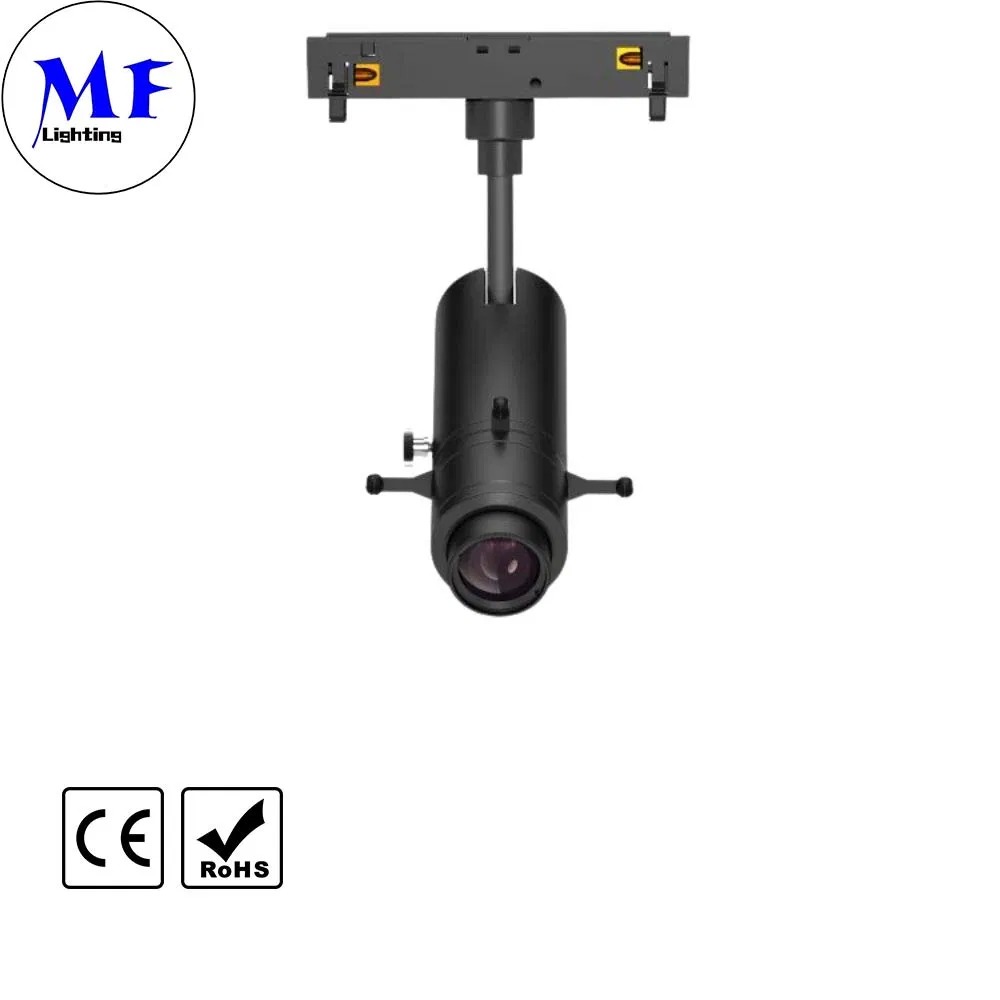

Factory Price 10W 300-350lm Zoom 15-36° LED Shapeable Commercial Track Lighting Contour Spotlight Track Light

The T1003K-3836B is a 10W LED contour spotlight from Kingfisher 2 series featuring a 15°-36° zoom lens for ultra-high-definition projection with ≤0.6% TV distortion. It delivers 300-350LM output with Ra≥97 color accuracy and supports 2700K/3000K/4000K CCT options. The compact magnetic design (Ø38mm radiator, 0.36Kg) enables 90° vertical and 355° horizontal rotation for precise positioning. Compatible with smart controls (DALI, Zigbee, Bluetooth), it's ideal for museums, retail displays, and architectural lighting, offering millimeter-level spot shaping with 11-lens optics for uniform illumination. The anti-glare design (UGR<19) ensures comfortable viewing in premium commercial applications.

Item no.	T1003K - 3836B
Power	10W
Luminous Flux (3000K)	300-350LM
Beam Angle (Lens Model)	Zoom 15-36° (3836B)
Ra	97
Color of housing	Black, White
Dimension (mm)	¢38*H178.5 (¢38 lens)
Track type	4 wires

Key Features

Variable Zoom Optics (15°-36°) - Adjustable beam angle provides versatile lighting control from spot to flood
High-Precision Projection (≤0.6% Distortion) - Ultra-sharp imaging with minimal distortion for detailed projections
Professional Color Rendering (Ra≥97) - Exceptional color accuracy enhances artwork and retail displays
Smart Lighting Compatibility - Seamless integration with DALI, Zigbee, and Bluetooth systems
Flexible Rotation & Compact Design - 90° vertical and 355° horizontal tilt with magnetic mounting
Anti-Glare Performance (UGR<19) - Low unified glare rating ensures comfortable viewing

Technical Advantages

Cold Forging Integrated Radiator

Radiator made of 1070# pure aluminum with high thermal conductivity (226W/m.K), low-temperature differences, minimal light failure, and extended service life.

360° Manual Rotation Design

Loosen the manual screw to achieve 360° spot rotation adjustment, solving projection and light spot rotation requirements.

High-Definition Optical Lens

Multiple high-definition coated optical lenses provide high luminous efficiency, excellent spot uniformity, minimal distortion, and extensive linear zoom range with clean cut-off lines.

Optical-Grade Variable Aperture

High-precision special material diaphragm with no blurring or freezing. Manual insertion and removal of light cutting device freely changes spot shape.

Multi-Layer Dry Damping

Focusing device requires no lubricating oil, providing silky feel with stable, reliable, wear-resistant operation that maintains performance over extended use.

Enhanced Linear Zoom

Short stroke with considerable focal length, high short-focus and long-focus recognition, visible to naked eye, with enhanced linear zoom convenience.

Product Parameters

Applications

Museum & Art Gallery Lighting - Perfect for highlighting artwork with precise, high-CRI illumination

Retail & Luxury Displays - Ideal for accent lighting in boutiques with sharp, adjustable beams

Hotel & Restaurant Ambiance - Enhances interior design with warm-to-neutral white tuning

Architectural & Event Lighting - Used for dynamic gobo projections and framing architectural features

Home Decorative Lighting - Adds high-end touch to residential spaces for wall-washing and artwork illumination

Machine Vision & Studio Lighting - Delivers distortion-free, uniform light for precision applications

Packaging & Shipping

Certifications

Frequently Asked Questions

Q1: What do you sell?

A1: We provide good quality of floodlight, high bay light, explosion proof light, tri-proof light, downlight, and other lighting products, as well as responsible services and reliable after-sales warranty.

Q2: Is it OK to print my logo on led light product?

A2: Yes. We provide ODM and OEM services. Please inform us formally before our production and confirm the design firstly based on our sample.

Q3: How to deal with the faulty?

A3: During the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.

Q4: Can I have a sample order for led light?

A4: Yes, we welcome sample order to test and check quality. One sample or mixed samples are acceptable.

Q5: How long time to ship the goods if place an order?

A5: Usually 7 days for sample or small order, 15 working days for bulk order, but sometimes depend on the order quantity.
