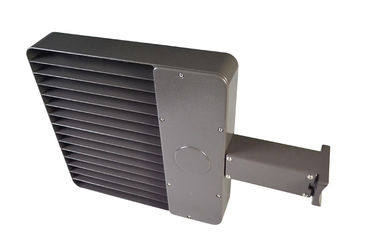

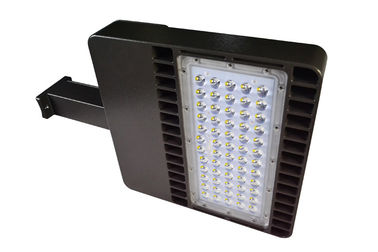

IP67 120W Cree Chip , Meanwell Driver 15600lm LED Parking Lot Lighting With Cool White

Thông tin chi tiết sản phẩm:
Nguồn gốc: China
Hàng hiệu: MF
Chứng nhận: CE,RoHS
Số mô hình: MF-P120
Thanh toán:
Số lượng đặt hàng tối thiểu: 50pcs
Giá bán: Negotiable
chi tiết đóng gói: 590*395*115mm/pcs, N.W:6.8Kg G.W:8.5kg
Thời gian giao hàng: Depends on orders
Điều khoản thanh toán: T/T, Western Union, L/C,Paypal
Khả năng cung cấp: 10,000pcs/Month

Thông tin chi tiết

Item No:: MF-P120 Power:: 120W
Input voltage:: AC85-305V LED Chip:: CREE XTE/ SAMSUNG 351B
LED Driver:: Meanwell Luminous Flux(lm):: 15600lm
CRI:: >80 IP Grade:: IP67
Mounting: Pole/wall Mount As Option Function: Dimmable/Photocell sensor
Điểm nổi bật:

Car parking lot lights

,

parking lot led lights

Mô tả sản phẩm


IP67 120W Cree Chip ,  Meanwell Driver 15600lm LED Parking Lot Lighting With Cool White



 Description:

LED Parking Lot Lighting is the latest released product for Parking lot lighting from Ming Feng in 2014. This light is allocated with top grade LED from Cree and driver from Meanwell, which guarentees a working lifetime over 50,000h hours and a warranty of 5 years. Ming Feng LED Parking Lot Lighting could be adjustable bracket for installtion, this LED light could be easily installed and operated and suits different demands for various car park.

Our this parking lights with IP65 waterproof, 90°, 120°, 90*120°, 85*135° different beam angle, Grey/ Black/Silver body color for choose, Powder coated die casting aluminum, High standard corrosion resistant finishing and UV resistant can be optional if required.6 different kinds of bracket avaiable for pole, wall...etc installation.


Specifications: MF-P120 Parking Light Data Sheet.pdf



Item

MF-P120

Input voltage

85-305Vac  50Hz/60Hz

LED Power

120W

Rated Power

125W

Delivered Flux(Tj80°c)

15600lm

IP Rating

IP67

Luminous Efficiency

130LM/W

LED Qty: 60pcs
Pole Diameter(mm) Dia60mm / Dia76mm

Color temperature

3000K / 4000K / 5000K

LED Chip

Cree XTE/ SAMSUNG 351B

LED Driver

Meanwell

Color Rendering Index

>80

Power Factor

>0.98

Lifespan

≥100,000hrs

Operation Environment

Temperature:-40°C~50°C / Humidity:10%~95%

Material

Aluminum Alloy

Product Size(mm)

343(L)*432(W)*176(H)

Packing Size(mm)

590(L)*395(W)*115(H)/pcs

Net Weight

6.8Kg

Certificate

CE/RoHS/TUV/FCC/DLC

Warranty Period

5 years



Competitive Advantage:


1. Light Source: We are use 150LM/W SAMSUNG 351B Chip / CREE XTE Chip options, efficiency acheives 130LM/W.
2. Driver:Taiwan Meanwell LED Driver, Wide AC90-305V, PF>0.98,low THD<9%.
3. Waterproof Grade: IP67.

4. Beam Angle: 90°, 120°, 90*120°, 85*135°

5. Functions: Dimmable, Photocell available.

6. Warranty: Five years

7. Material: Powder coated die casting aluminum, High standard corrosion resistant finishing and UV resistant can be optional if required.



Dimension:



IP67 120W Cree Chip ,  Meanwell Driver 15600lm LED Parking Lot Lighting With Cool White 0




Packaging:

IP67 120W Cree Chip ,  Meanwell Driver 15600lm LED Parking Lot Lighting With Cool White 1



IP67 120W Cree Chip ,  Meanwell Driver 15600lm LED Parking Lot Lighting With Cool White 2
